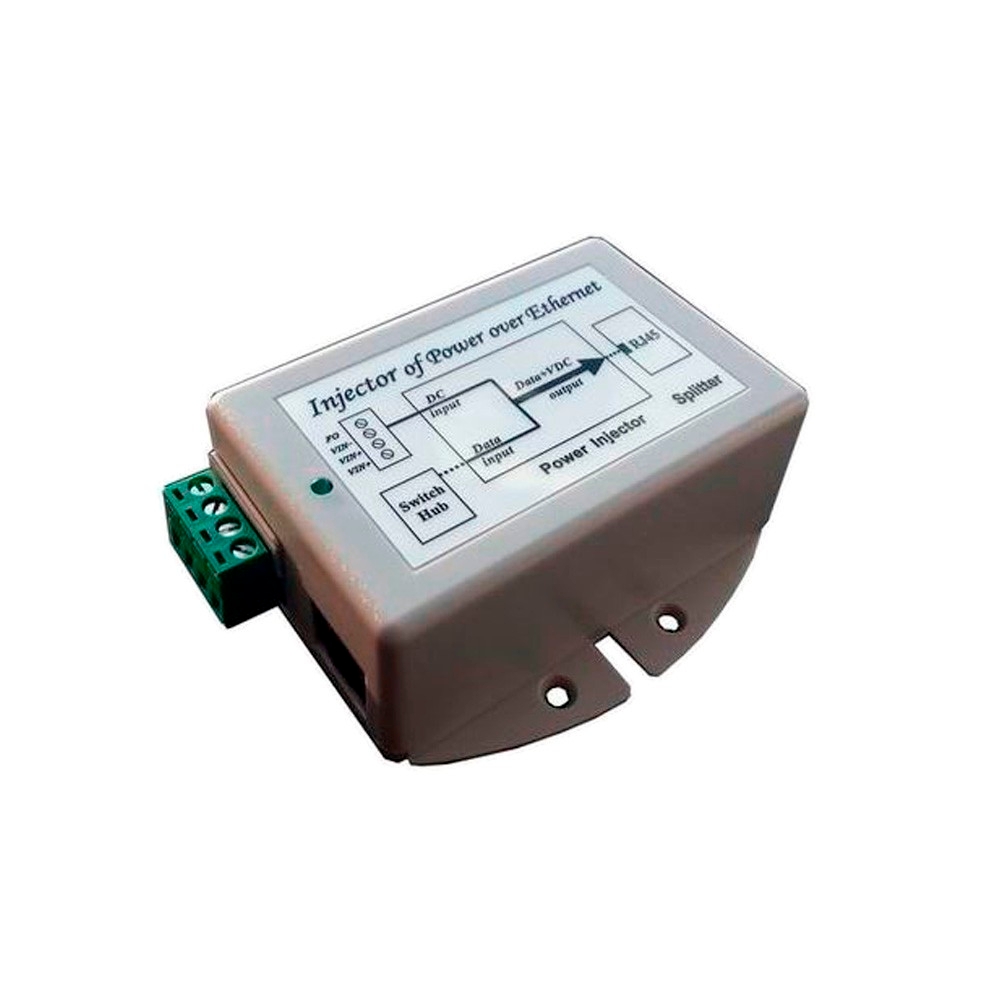

MODEL: TP-DCDC-1248G

The TP-DCDC-1248G-HP DC to DC Converter from Tycon Power® offers a cost-effective and efficient DC to DC Converter solution for delivering Passive Power over Ethernet (PoE) from a 12VDC source, such as a battery system or vehicle. This unit integrates a PoE injector that simultaneously provides both power and data over CAT5/6 Ethernet cables, ensuring a seamless and reliable connection. Additionally, the output voltage is regulated and protected, offering consistent performance in various applications.

Furthermore, the TP-DCDC-1248G-HP features two common (-) and two (+) inputs, allowing for the connection of two power sources, such as a primary and a backup. This redundancy enhances reliability, especially in critical applications where uninterrupted power is essential. The unit also boasts built-in protections for surge, short circuit, and overload, ensuring long-lasting and safe operation. Moreover, both the input and output are isolated, further increasing system stability and reducing the risk of interference.

The TP-DCDC-1248G-HP accepts gigabit data via a shielded RJ45 jack and then provides gigabit data-out along with PoE power through the shielded RJ45 output jack. It delivers power efficiently on Ethernet pins 4,5 (V+) and 7,8 (V-), making it compatible with a wide range of PoE devices. With a maximum power output of 50W, this unit ensures reliable, uninterrupted power while safeguarding against surge, short circuit, and overload.

The compact dimensions of the TP-DCDC-1248G-HP, measuring 85 x 76 x 36mm (3.4 x 3 x 1.4in), and its lightweight design, weighing 134g (4.7oz), make it easy to install in various settings. Whether you need to power remote systems, industrial applications, or high-power Ethernet devices, the TP-DCDC-1248G-HP offers a reliable and efficient solution for your power needs. Its robust construction and versatile design make it an essential component for any network that requires high power PoE solutions, ensuring that your devices receive the power and data they need to operate efficiently and effectively.

 Features

• DC to DC Converter
• Input Voltage 12VDC or 24VDC (Range 9-36VDC)
• Passive PoE Output, 48VDC
• Dual Inputs for Connecting 2 Power Sources
• Integrated 10/100/1000MB PoE Inserter
• High Power up to 20W
• Low Self Consumption Power
• Short Circuit, Over Current and Reverse/Over Voltage Protect
• High Temperature Operation
• Compact Size – Maximize Available Space
• I.T.E. Power Supply

Applications

• 12V / 24V Battery Systems, Vehicle Applications
• Wireless Access Points and Client Devices
• IP Phone and Security Camera Systems
